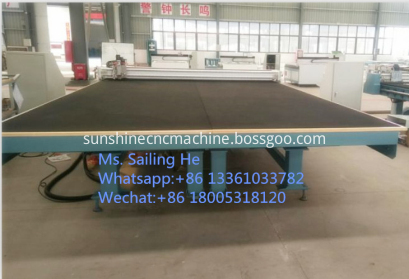

Top Quality CNC Glass Cutting Machine

Payment Type:	L/C,T/T,D/P,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	1 Set/Sets
Delivery Time:	10 Days

Basic Info

Model No.: XTG3826

Certificate: ISO9001;CE

Model: XTG-326

Additional Info

Packaging: Seaworthy packing, wooden box or customized

Productivity: 20sets/month

Brand: Sunshine CNC

Transportation: Ocean,Air,by truck

Place of Origin: Shandong,China

Supply Ability: 20sets/month

Certificate: ISO9001;CE

Port: Qingdao,Shanghai,Guangzhou

Product Description

Top Quality CNC Glass Cutting Machine:

1.Cutting circles, squares and any shapes you want

2.Scanning shapes and conversion cutting path into cutting software, do not need to drawing

3.Automatic optimize cutting path to save more much glasses

4.Using temper 45# steel rack ensure higher precision and stability

5.Customize available ,any size color or functions you need.

Table size	3660*2440mm
Thickness of cutting glasses	2~19mm
Accuracy	≤0.15mm
Speed	0~180M/min(adjust as you need)
Machine size	4900(L)3300(W)1400(H)mm
Height	900±50mm
Transmission	X,Y,Z axis is Japanese YASKAWA and KHK Precision gear device
Cutting set	adopt air press and spring; 360 degree`s cutting head turn, up and down cutting. Available of any shapes of glass
Oil supply	automatic oiling device. Oil hydraulic adjustable.
Positioning device	optical scanning positioning system
Personnel requirements	requirements: knowing basic knowledge of cutting and computer operation

II. Mechanical part:

Main Bearings	Japanese NSK
Transmission belt/pulley	Barbieri of Italy
Countertop	imported kangpeite waterproof/fireproof panel

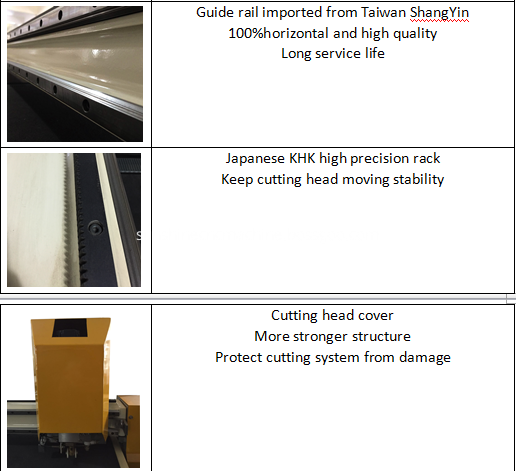

Rack	KHK, rails: silver(Taiwan) .

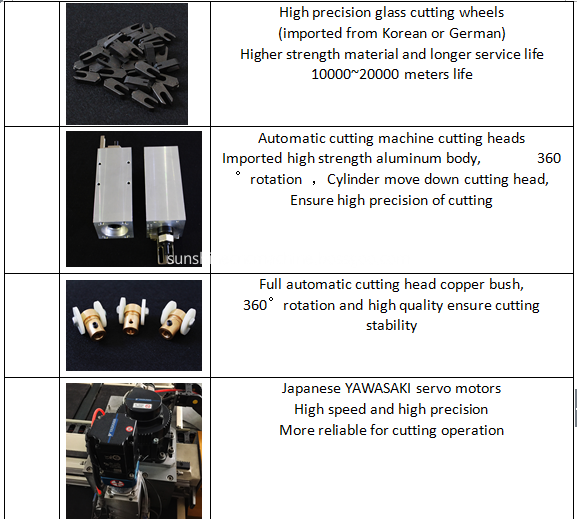

Cutter wheel/wheel clamp	Germany Bohle
Surface of table	Korea industrial belt(black)
Cutting set	air press and spring;(the ideal effect)
Delivery device (Optional)	auto-sensing device(five belts transmission and two close to auto-sensing switches to achieve automatic sensing and transmission; reducing work of staff )

III. Electrical parts:

Console screen	Using PC computer to control with micro-soft windows interface
Voltage	380V/50HZ with a regulator device
Servo System	Japanese YASKAWA
Control Systems	USA control card
Drive	The Delta brand.
Pneumatic Original	Japanese SMC(main components)
