Steel Fabrication Machinery CNC Plate Driller

Basic Info

Model No.: PMZ Series

OEM/ODM: OEM/ODM Manufauturing

Certificate: CE/ISO9001

CNC Or Not: CNC

Color: Grey/Blue Or Customized

Voltage: 380V/50HZ/3P Or Customized

Cooling Type: Water/air Cooling

PARTS: Internationl Famous Brand

Model: PMZ Series

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude or customized

Productivity: 10 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 10 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

Steel Fabrication Machinery CNC Plate Driller :

Steel fabrication equipment including CNC plate drilling machine, beam drill lines,

plate processors, angle lines etc.

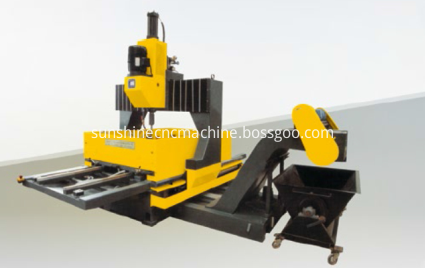

PMZ series gantry movable CNC plate drilling machine for drilling holes in steel plates.

Mainly used for Steel structure fabrication project.

Technical Data:

Model		PMZ-16	PMZ-2016
Max. size of work-piece(mm)		1650*1000	2000*1600
Max. thickness of work-piece(mm)		80	100
Max. drilling diameter		∮50	∮50
Principle Axis	Quick change chuck	Morse taper hole 4# 3# 2#	Morse taper hole 4# 3# 2#
	Rotate speed(r/min)	120-150 Step-less speed regulation	120-150 Step-less speed regulation
	Feeding stroke(mm)	180	180
	Motor power (KW)	5.5	5.5
	Feeding mode	Hydraulic	Hydraulic
Hydraulic Clamp	Clamping thickness	15-80mm	35-100mm
	Tongs number	12	12
	Clamping force(KN)	7.5	7.5
	Clamping switch	Foot switch	Foot switch
Motor Power	Servo Motor (KW)	1.0/1.0	1.5/1.5
	Hydraulic motor(KW)	2.2	2.2
	Cooling motor(KW)	0.25	0.25

Steel fabrication equipment

Guarantee & Aftersales service:

1)Guarantee the complete machine for 18 months, except the consumable parts.

2) 24hour technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
