PVB/EVA Safety Laminated Glass Cutting Machine

Basic Info

Model No.: XTS Series

Certificate: ISO9001;CE

Model: XTS-3826

Additional Info

Packaging: Seaworthy packing, wooden box or customized

Productivity: 20sets/month

Brand: Sunshine CNC

Transportation: Ocean,Air,by truck

Place of Origin: Shandong,China

Supply Ability: 20sets/month

Certificate: ISO9001;CE

Port: Qingdao,Shanghai,Guangzhou

Product Description

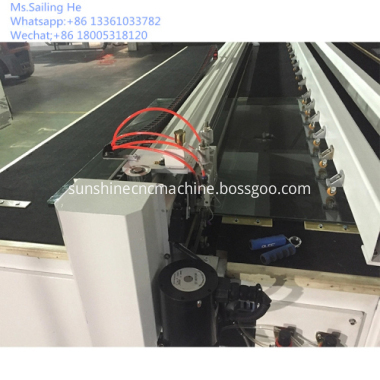

PVB/EVA Safety Laminated Glass Cutting Machine:

Laminating glass cutting table is widely used in thick plate glass, laminated glass from the line.

The equipment operation is convenient, reliable, stable operation, the cutting efficiency and

high precision.

National standard square tube welding machine frame. The synchronous belt transmission system.

Imported PLC and electrical parts, stepper motor, liquid crystal display, man-machine interface,

convenient operation and stable performance. The cutting speed can be set directly. Upper and

lower cutter head to cut, match degree is high, break easily.

Cutting accuracy:              ≤0.50 mm
The diagonal accuracy:      ≤1 mm/m or less
Cutting maximum size:      2440 x 3660 mm (special specifications can be customized

                                       according to customer needs)
Cutting the minimum size: 100 mm
Cutting thickness:             0.38 + 3 + 3 -- 10 + 3.04 + 10 mm
Cutting efficiency:             1/3-4 minutes
Knife wheel life:                3-50000 meters (linear conventional cutting)
Operator:                        1-2 people
Equipment size:                4300 * 2700 * 1200 (dimensions) 20`FCL.

Remarks:

Pkg: Seaworthy packing or customized

Terms: FOB/CIF/CFR/EXW

From Qingdao, China To_______,

Delivery Time: During 30 Days After We Receive Your First Payment

Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and

                The rest 70% is effected while delivering the goods

Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
