| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 30 Days |
Basic Info
Model No.: PMZ Series
OEM/ODM: OEM/ODM Manufauturing
Certificate: CE/ISO9001
CNC Or Not: CNC
Color: Grey/Blue Or Customized
Voltage: 380V/50HZ/3P Or Customized
Cooling Type: Water/air Cooling
PARTS: Internationl Famous Brand
Model: PMZ-3020
Additional Info
Packaging: Wooden Pallet/Wooden Boxes/Nude or customized
Productivity: 10 Sets Per Month
Brand: Sunshine CNC
Transportation: Ocean,Land,Air
Place of Origin: Jinan,China
Supply Ability: 10 Sets Per Month
Certificate: ISO9001
HS Code: 84624190/84624100/84623990
Port: Qingdao,Tianjin,Shanghai
Product Description
Jinan Xingtian CNC Plate Processor:

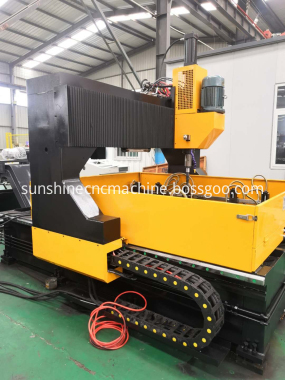

PMZ-3020 gantry movable CNC plate drilling machine for drilling holes in steel plates.
The processed workpieces may be steel structural buildings, bridges, connecting
plates on iron towers, or large flanges, heat exchanger tube sheets, and the like.
Fully automatic machining. High efficiency and high precision.
Main Technical Data:
|
Name |
Item |
Parameters |
|
Workpiece size |
Material overlap thickness |
Max.100mm |
|
|
Width*Length
|
Max.3000mm×2000mm |
|
Spindle
|
Quick change tool system |
Three different drill tools can be clamped at the same time |
|
|
Drill diameter |
Max.φ50mm |
|
|
Shift mode |
Inverter step-less speed change |
|
|
Rotating speed |
120-560r/min |
|
|
Feed stroke |
350mm |
|
|
Processing feed |
Servo feed |
|
X.Y Axis |
X-axis maximum stroke |
3000mm |
|
|
X axis moving speed |
0-80m/min |
|
|
Y-axis maximum stroke |
2000mm |
|
|
Y axis moving speed |
0-80m/min |
|
Work -piece Clamping |
Clamping thickness |
35-100mm |
|
|
Number of clamping cylinders |
12pieces |
|
|
Clamping force |
7.5kN |
|
|
Clamp open |
Foot switch |
|
Cooling
|
Method |
Forced loop |
|
|
Capacity |
300L |
|
Hydraulic pressure |
Clamping pressure |
6Mpa(60kgf/cm2) |
|
|
Oil tank capacity |
90L |
|
Air pressure |
Gas source |
0.4Mpa(4kgf/cm2) |
|
Motor |
Spindle |
7.5kW |
|
|
Hydraulic pump |
2.2kW |
|
|
Water cooling pump |
0.45kW |
|
|
X-axis servo motor |
1.5kW×2 |
|
|
Y-axis servo motor |
1.5kW |
|
|
Z-axis servo motor |
2kW |
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
