| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA |
| Min. Order: | 1 Set/Sets |
| Delivery Time: | 30 Days |
Basic Info
Model No.: PMZ Series
OEM/ODM: OEM/ODM Manufauturing
Certificate: CE/ISO9001
CNC Or Not: CNC
Color: Grey/Blue Or Customized
Voltage: 380V/50HZ/3P Or Customized
Cooling Type: Water/air Cooling
PARTS: Internationl Famous Brand
Model: PMZ-16
Additional Info
Packaging: Wooden Pallet/Wooden Boxes/Nude or customized
Productivity: 10 Sets Per Month
Brand: Sunshine CNC
Transportation: Ocean,Land,Air
Place of Origin: Jinan,China
Supply Ability: 10 Sets Per Month
Certificate: ISO9001
HS Code: 84624190/84624100/84623990
Port: Qingdao,Tianjin,Shanghai
Product Description

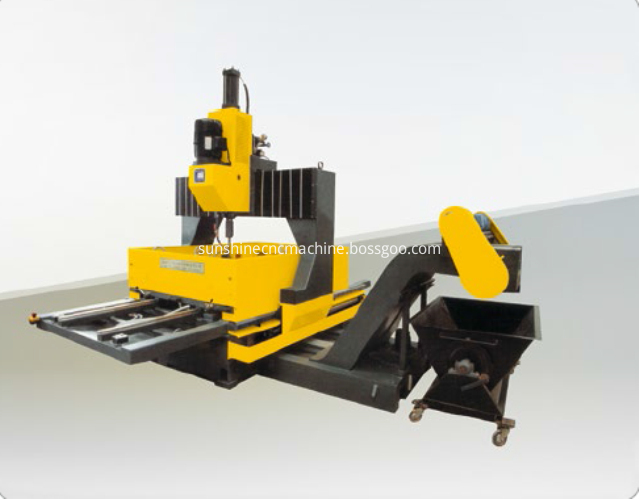

Hot Sale Gantry Movable Steel Drilling Equipment:
Usage of the machine:
The machine is mainly used for drilling the plates used in the wind power, heat-exchanger and
other tube plates industry, which adopts carbide drill with high-speed. The two drilling units can
work independently. The processing procedure is automatic and can fulfill the automatic, high
precision, many kinds of variety and small-medium batch of production.
|
Model |
PMZ-16 |
PMZ-2016 |
|
|
Max. size of work-piece(mm) |
1650*1000 |
2000*1600 |
|
|
Max. thickness of work-piece(mm) |
80 |
100 |
|
|
Max. drilling diameter |
∮50 |
∮50 |
|
|
Principle Axis |
Quick change chuck |
Morse taper hole 4# 3# 2# |
Morse taper hole 4# 3# 2# |
|
Rotate speed(r/min) |
120-150 Stepless speed regulation
|
120-150 Stepless speed regulation |
|
|
Feeding stroke(mm) |
180 |
180 |
|
|
Motor power (KW) |
5.5 |
5.5 |
|
|
Feeding mode |
Hydraulic |
Hydraulic |
|
|
Hydraulic Clamp |
Clamping thickness |
15-80mm |
35-100mm |
|
Tongs number |
12 |
12 |
|
|
Clamping force(KN) |
7.5 |
7.5 |
|
|
Clamping switch |
Foot switch |
Foot switch |
|
|
Motor Power |
Servo Motor (KW) |
1.0/1.0 |
1.5/1.5 |
|
Hydraulic motor(KW) |
2.2 |
2.2 |
|
|
Cooling motor(KW) |
0.25 |
0.25 |
|
Jinan XingTian Sunshine CNC Machine Co.,Ltd. is Leading Manufacturer
of CNC Steel Plate Drilling Machine,CNC Steel Drilling Machine,CNC Plate
Drilling Machine,CNC Drilling Machine in China,having been exporting to
Russia; Ukraine; KSA; UAE;Egypt; Morocco; Kenya; Ethiopia; South Africa;
India; Sri Lanka; Pakistan; Bangladesh;Myanmar; Thailand; Indonesia;
Malaysia;Australia; Brazil; Mexico; South Korea etc. for more than 10 years.
Remarks
Pkg: Seaworthy packing or customized
Terms: FOB/CIF/CFR/EXW
From Qingdao, China To_______,
Delivery Time: During 30 Days After We Receive Your First Payment
Payment: Telex Transfer (T/T), 30% Be Paid After Confirming The Order and
The rest 70% is effected while delivering the goods
Trademark: Sunshine CNC
Guarantee & Aftersales service:
1)Guarantee the complete machine for 18 months, except the consumable parts.
2) 24hour technical support by email or calling.
3) User-friendly English manual for machine using and maintaining.
Contact person: Ms.Sailing He
Mobile: +86 18005318120 (Wechat)
Whatsapp: +86 13361033782
