Horizontal Small Tempered Glass Washing Machine

Basic Info

Model No.: XTW-500

Certificate: ISO9001;CE

Color: White/blue/black Or Customized

Model: XTW-500

Dimension(L*W*H): 5800*3300*2700

Weight: 3000kgs

Voltage: 380V/50HZ/3P Or Customized

Warranty: 12 Months

Additional Info

Packaging: Seaworthy packing, wooden box or customized

Productivity: 20sets/month

Brand: Sunshine CNC

Transportation: Ocean,Air,by truck

Place of Origin: Shandong,China

Supply Ability: 20sets/month

Certificate: ISO9001;CE

Port: Qingdao,Shanghai,Guangzhou

Product Description

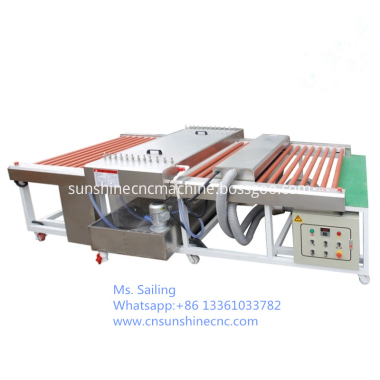

Horizontal Small Tempered Glass Washing Machine:

Basic parameters:

Size range: 30*30-490mm; thickness: 0.5-2.0mm

Air Knife: 2.2kw high pressure air, 380v; electric rods power of 6 kW; four fan total 800W

Transmission CVT: 0.37kw, 380v (stepless)

Pumps: 250w, 380v

Brush motor: 0.37kw, 380v

Weight : 600KG (about weight)

Dimensions : 2000 × 1200 × 1000mm

*GB square tube frame;the shell is 1mm spray iron panel

*Cleaning / drying/ water absorbing sponge parts are stainless steel shell

*Delivery/cleaning /absorbent sponge roller uses high temperature, acid materials, long life

*Transmission parts are controlled by speed motor; cleaning speed adjustable.

*Temperature Controller can adjust blowing temperature.

* The device uses compact roller driven design, large processing area; circulating water to wash the glass at once.
