CNC Punching Shearing Line for Flat Bar

Payment Type:	L/C,T/T,D/P,Money Gram,Western Union
Incoterm:	FOB,CFR,CIF,EXW,FCA
Min. Order:	1 Set/Sets
Delivery Time:	30 Days

Basic Info

Model No.: DGX-1410

CNC: High Effieciency

OEM/ODM: OEM/ODM Manufauturing

Function: Flat Bar Punching Typing Shearing

PARTS: International Famous Brand

Warranty: 12 Months

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude

Productivity: 20 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 20 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

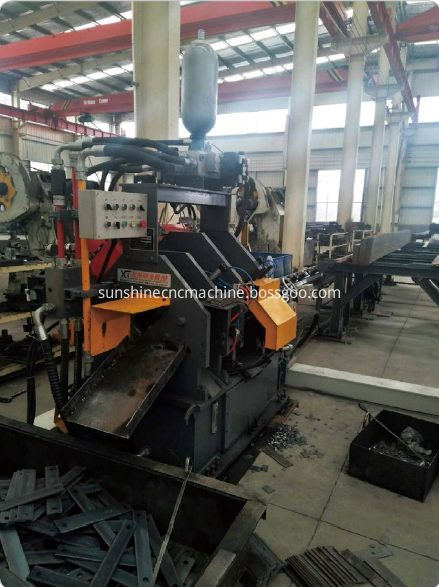

CNC Punching Shearing Line for Flat Bar :

This production line is suitable for punching shearing, typing on band angle steel the

center of channel steel in the filed of electric power, communication, automobile and

so on. By changing the mold to punching round hole and slotted hole at one-time.

The processing range is big, working efficiency and accuracy is high.

Technical Data:

Item Name	Specification
Band steel size(mm)	404---10010
Max .length of blank(m)	9
Max. diameter of punching(mm)	Round hole: ∮26 Slot hole: 21.5*40
Punching force(KN)	750
Shearing force(KN)	600 (≤80 can cut circle in band steel)
Quantity of punching surface	1
Quantity of punch	3
Qty. Of punch on each side	Any
Marking normal force(KN)	700
Number character (Group)	1(12 character)
The number of CNC axis	2
Speed of feeding car(m/mim)	90
Punching frequency(minˉ1)	50-60
Lubricating system	Equipped with automatic lubrication device

Jinan XingTian Sunshine CNC Machine Co.,Ltd. is Leading Manufacutrer of CNC Steel

Plate Drilling Machine,CNC Steel Drilling Machine,CNC Plate Drilling Machine,CNC

Drilling Machine in China,having been exporting To Russia; Ukraine;KSA; UAE;Egypt;

Morocco;Kenya; Ethiopia; South Africa; India; Sri Lanka; Pakistan; Bangladesh; Myanmar;

Thailand ;Indonesia; Malaysia; Austrailia; Brazil; Mexico; South Korea etc. for more

than 10 years.
