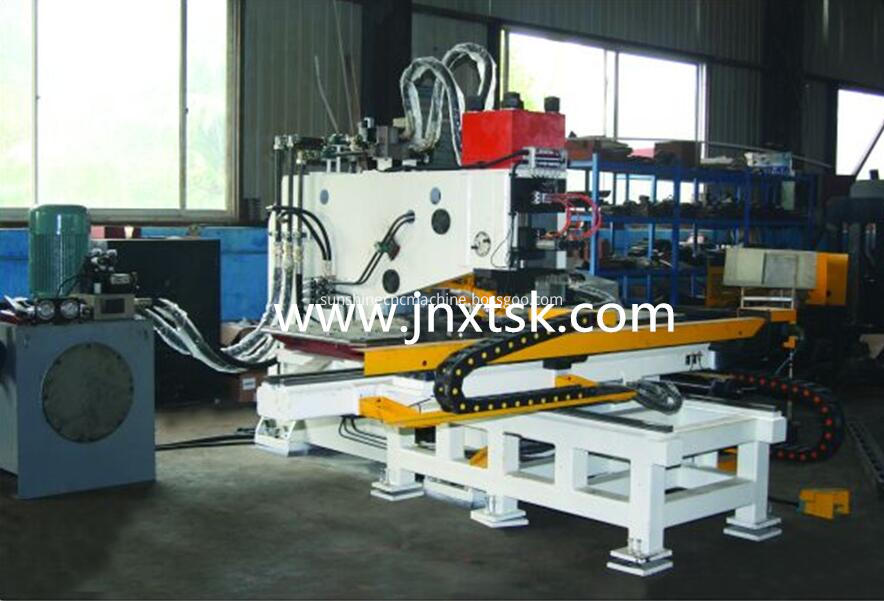

CNC Punching Marking Machine

Unit Price:

USD 30000.0000 - 45000.0000 / Set/Sets

Payment Type:

L/C,T/T,Western Union

Incoterm:

FOB,CFR,CIF,FCA,CPT

Min. Order:

1 Set/Sets

Delivery Time:

15 Days

Contact Now

Basic Info

Model No.: YBJ-120

Control Way: CNC Control

Force: Hydraulic

Auto Lubrication: Auto Lubrication

Working Time: Stable Long-life Time

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude

Productivity: 20 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 20 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

CNC Punching Marking Machines Parameters As Follows:

Max size of work piece: 1500x800mm

2.Max punching diameter: 40mm into max. 20mm thickness

3.Punching thickness: 5~25mm

4.Punching force: 1200KN Marking force:1000 KN

5.Dimensions of marking:14x10x19

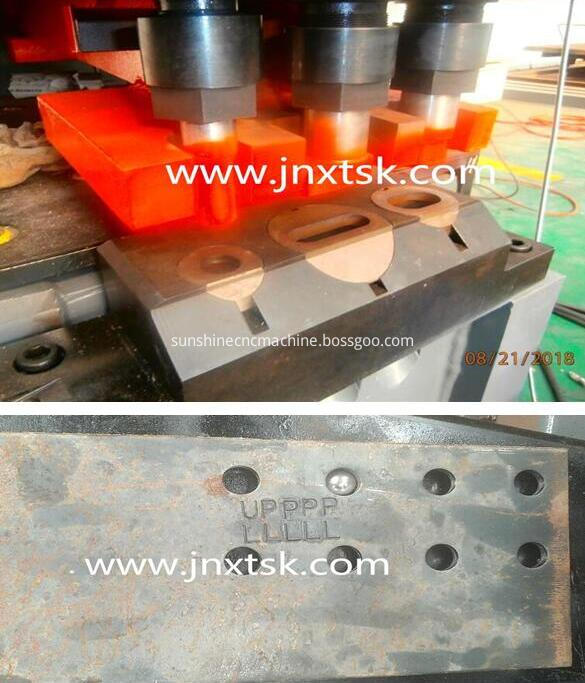

6.Die-stations:3 (2 punching,1marking)

7.Programming Mode:Input by keyboard,R232 or USB interface

8.Hydraulic System:oil cooling

9.CNC Two Axis

10.Precision: +/-0.5mm

11.Total Power: 25kw.

12.Over Dimension:3200x3000x2600mm

Weight: 8000kgs or so

Apply scope

It is used to punching, drilling and typing on plate materials of
steel structure, iron tower industry and car wing plate etc.

2. Technique characteristics

A. integration of machinical, electrical and hydraulic;

B. controled by PLC and fed by serve motor;

C. possess the function of malfunctions self-diagnosis

D. easy program and can use directly the program data generated by
sample software;

3. Product advantages

A. Major functional parts adopt modularization assemble, easy to
maintain;

B. The same plate can be punched,typed and drilled;

C. Drilling unit possesses the empty run fast forward function,
slow speed processing function, high speed return function to improve the work
efficiency;

D. Program only need to input workpiece size, diameter, workpiece
number, and may also constitute local area network with design department to
share data;

4. Notes

This machine have many types and can be designed according to
customers` requiremen
