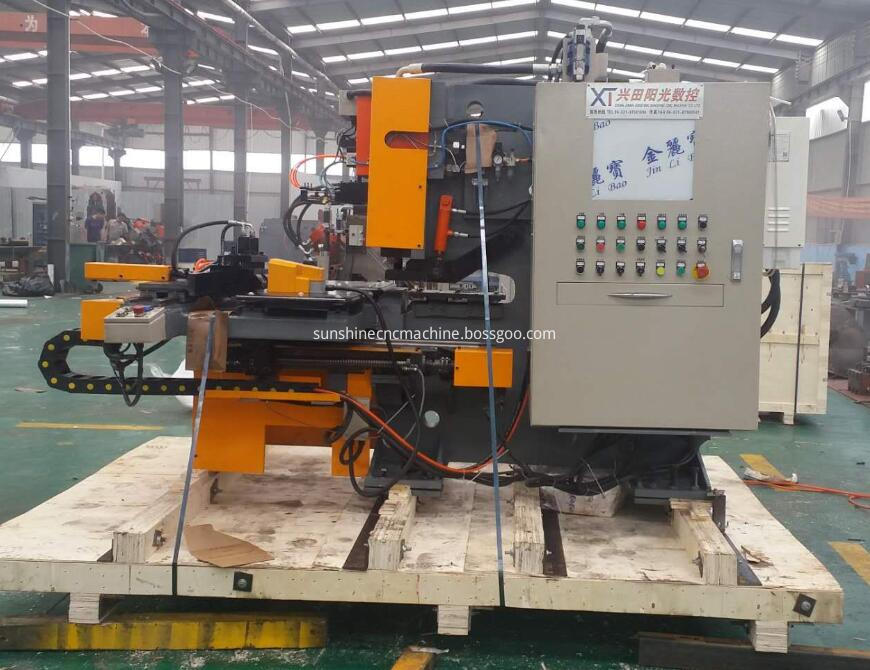

CNC Plate Hole Punching Marking Machine

Basic Info

Model No.: YBJ-80

Control Way: CNC PLC Control

Speed: High Speed High Efficiency

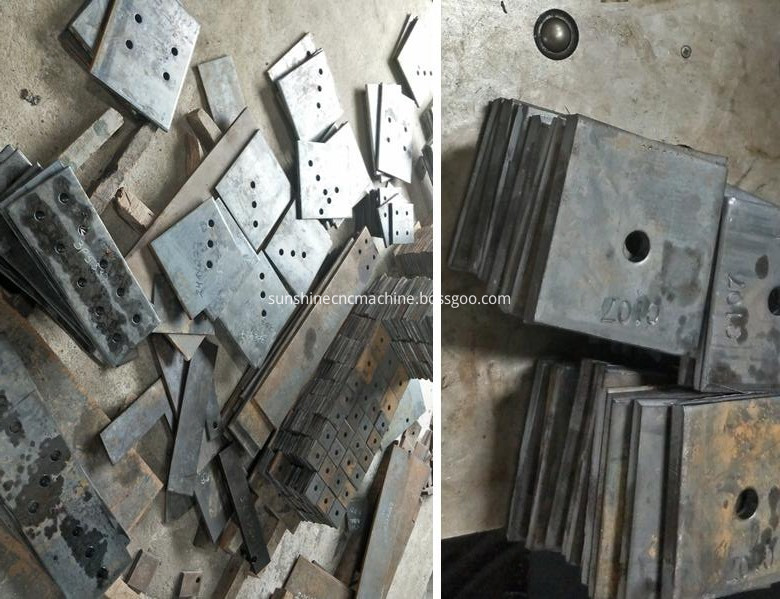

Function: Punching Marking Into Steel Plate

Space: Low Space Taking Up

Force: Hydraulic

Remote Control: Remote Control

Additional Info

Packaging: Wooden Pallet/Wooden Boxes/Nude

Productivity: 30 Sets Per Month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Jinan,China

Supply Ability: 30 Sets Per Month

Certificate: ISO9001

HS Code: 84624190/84624100/84623990

Port: Qingdao,Tianjin,Shanghai

Product Description

Jinan XingTian Sunshine CNC Machine Co.,Ltd. Manufactured CNC Plate Punching Marking Machine, CNC Plate Hole Punching Machine,CNC Plate Punching Machine,Plate Hole Punching Machine YBJ-80 Has Been Polpular Since Started Manufacturing Both In And Abroad! It Takes Samll Space,But High Speed High Efficiency Working.And The Machine Is Very Easy Operation With Remote Control

Function.

The Features As Follows:

1.Max size of work piece: 800x500mm

2.Max punching diameter: 26mm

3.Punching thickness: 16mm Q235

4.Punching force: 800KN Marking force:800 KN

5.Dimensions of marking:14x10x19

6.Die-stations:3 (2 punching,1marking)

7.Programming Mode:Input by keyboard,R232 or USB interface

8.Hydraulic System:oil cooling

9.CNC Two Axis

10.Precision: +/-0.5mm

11.Total Power: 15kw

12.Over Dimension:2200x1600x1800mm

Weight: 4000kgs or so.
