Alumiminum Window & Door Making Machine

Basic Info

Model: XTZ-CNC-4000/2800

Color: Grey/white/blue Or Customized

Warranty: 18 Months

Packing: Seaworthing Or Customized

Voltage: 380V Or Customized

Additional Info

Packaging: Seaworthy packing, wooden box or customized

Productivity: 100 sets/month

Brand: Sunshine CNC

Transportation: Ocean,Land,Air

Place of Origin: Shandong,China

Supply Ability: 100 sets/month

Certificate: ISO9001/CE/SGS

HS Code: 847780

Port: Qingdao,Shanghai,Guangzhou

Product Description

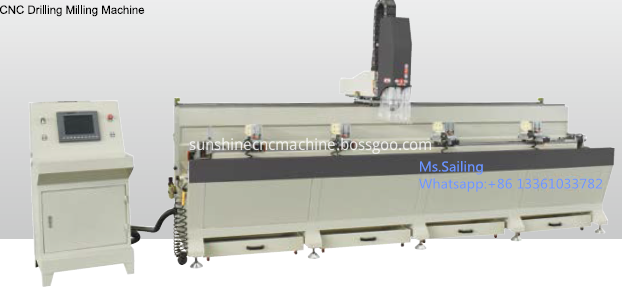

Alumiminum Window & Door Making Machine:

Main Feature:

1)Applicable to the processing of round holes, slots, keyholes, special-shaped holes etc. of aluminum alloy

     profiles, doors and windows, curtain wall aluminum alloy profiles, as well as aluminum profile milling,

     chamfering, plane engraving, etc.

2) The main shaft adopts cold electric main shaft, the power is 6KW, the rotation speed is 0--18000 r / min,

     the precision is high, the safety is good, and the reliability is high;

3) Adopting Taiwan's new generation CNC numerical control system, equipped with professional CAD-CAM

    programming software, automatic conversion processing G code, simple operation, high efficiency and

    low labor intensity;

4) The table is turned 180°, -90°--0°--+90°, and the profile can be processed on one side in one time.

    When machining deep through holes (shaped holes), deep hole machining can be realized by turning

     the table to improve Efficiency and quality;

5) Adopt automatic pump oil supply system, the tool adopts system control spray cooling device;

6) The main components adopt steel structure and they are all through aging treated.
